Texas Instruments provides a recommended PCB layout in the application note SLUA365, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Texas Instruments recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. A detailed capacitor selection guide is provided in the application note SLUA365.
The UCC2913DTR is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation.
Yes, the UCC2913DTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it is recommended to follow the specific requirements and guidelines for the target application.
Texas Instruments provides a troubleshooting guide in the application note SLUA365, which covers common issues and their solutions. Additionally, the device's datasheet and user guides provide detailed information on device operation, application circuits, and layout guidelines to help troubleshoot and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2913DTR Overview

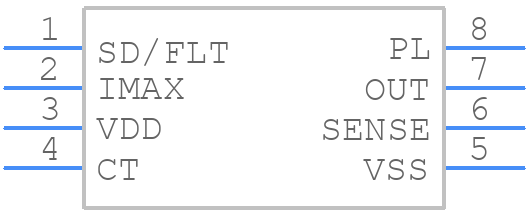

Use the download button to access the UCC2913DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC29,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
