UCC38051D - Texas Instruments

Description: PFC Controller for low to medium power applications requiring compliance with IEC 1000-3-2

Download UCC38051D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

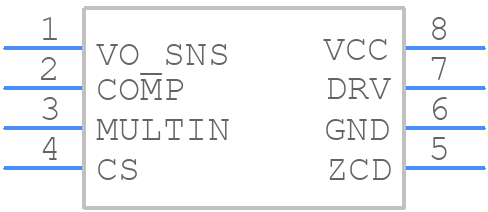

UCC38051D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC38051D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A height 1.75
click to zoom
3D Models
UCC38051D - Texas Instruments - 3D model - Small Outline Packages - D0008A height 1.75
click to zoom

UCC38051D Details

  • Manufacturer Part Number:

    UCC38051D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER
