FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
370 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
V62/09627-01XE Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout guidelines in their application notes, such as the 'PCB Layout Guidelines for Switching Regulators' document. Following these guidelines can help minimize noise, reduce EMI, and ensure optimal performance.
When selecting an inductor, consider factors such as inductance value, current rating, and physical size. The datasheet provides guidance on inductor selection, and Texas Instruments also offers online tools, such as the 'Inductor Selection Guide', to help with this process.
The V62/09627-01XE has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in your design.
The V62/09627-01XE is an automotive-grade device, and it meets the AEC-Q100 qualification standard. However, it's essential to review the device's specifications, reliability data, and testing results to ensure it meets the specific requirements of your high-reliability or automotive design.
The thermal resistance (RθJA) and junction-to-case thermal impedance (RθJC) values can be found in the datasheet or in the device's thermal characteristics section. These values are essential for calculating the device's junction temperature and ensuring reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V62/09627-01XE Overview

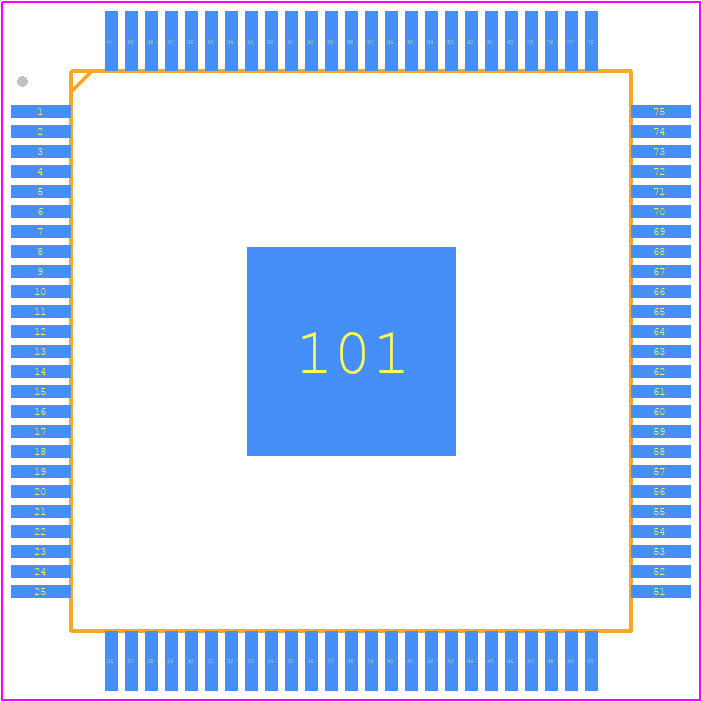

Use the download button to access the V62/09627-01XE schematic symbol, PCB footprint, and 3D model.
