VNQ7050AJTR - STMicroelectronics

Description: QUAD CHANNEL HIGH-SIDE DRIVER WITH CURRENTSENSE ANALOG FEEDBACK FOR AUTOMOTIVE APPLICATIONS

Download VNQ7050AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

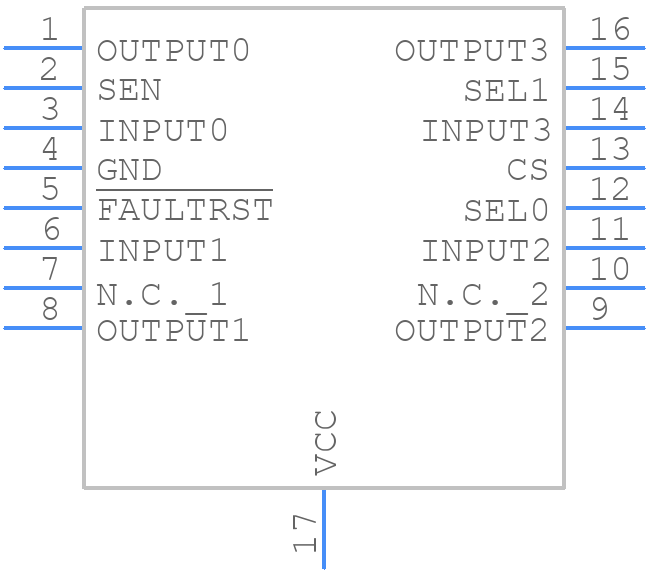

Symbol
VNQ7050AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7050AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16
click to zoom
3D Models
VNQ7050AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16
click to zoom

VNQ7050AJTR Details

  • Manufacturer Part Number:

    VNQ7050AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VNQ7050AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4898, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • STMicroelectronics provides a component selection guide in the application note AN4898, which includes recommendations for external components such as resistors, capacitors, and inductors.
  • The maximum junction temperature for the VNQ7050AJTR is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • The VNQ7050AJTR is rated for a maximum voltage of 42V, but it can be used in high-voltage applications with proper design and protection. STMicroelectronics provides guidelines for high-voltage applications in the application note AN4898.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4898, which includes common issues, symptoms, and solutions for the VNQ7050AJTR.
