The maximum power consumption of the XCKU035-2FBVA676E is approximately 12W, but it can vary depending on the specific design, clock frequency, and operating conditions.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the AMD-provided power-optimized IP cores and following the Xilinx Power Management Guide.
The maximum operating temperature of the XCKU035-2FBVA676E is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
To ensure signal integrity, follow the Xilinx PCB Design Guide, use controlled impedance routing, and add termination resistors as needed. Additionally, use the Xilinx Signal Integrity Wizard to analyze and optimize your design.
The recommended PCB stackup for the XCKU035-2FBVA676E is a 6-layer or 8-layer stackup with a minimum of 0.5mm thickness. The stackup should include a solid ground plane, power planes, and signal layers with controlled impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCKU035-2FBVA676E Overview

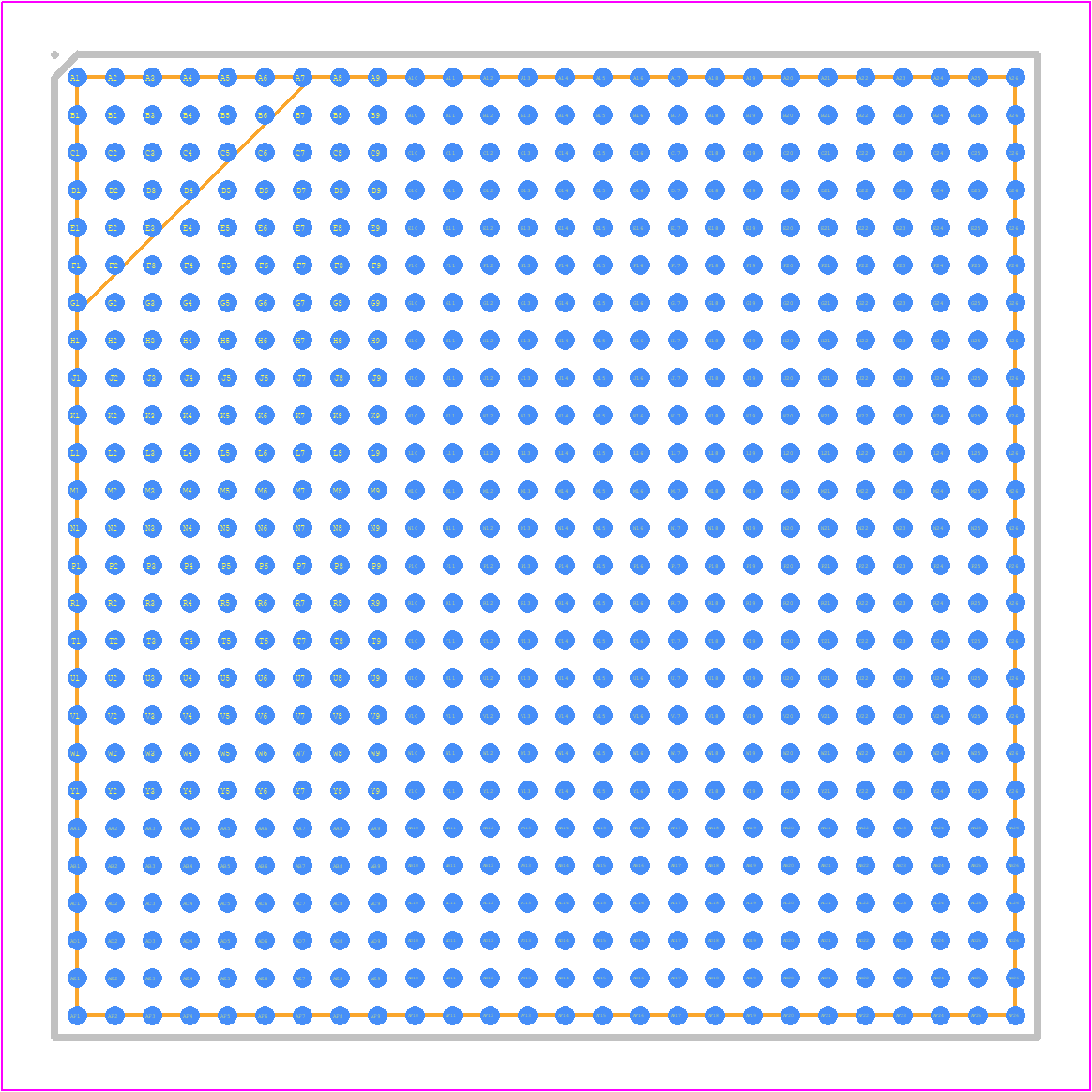

Use the download button to access the XCKU035-2FBVA676E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCKU0,
or try a keyword search, such as Field Programmable Gate Arrays
