Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct clock frequency, setting the correct gain and offset, and using the correct input range. Also, consider using the ADC's built-in calibration features and adjusting the sampling rate to match your application's requirements.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC's internal circuitry is properly initialized and configured.
Use a FIFO or a buffer to handle the ADC's output data, and ensure that the data is read at a rate that matches the ADC's sampling rate. Also, consider using the ADC's built-in data formatting features, such as twos complement or offset binary, to simplify data processing.
Common pitfalls to avoid include not following the recommended layout and routing guidelines, not using a common mode filter or ferrite bead to filter out high-frequency noise, and not properly configuring the ADC's gain and offset settings. Also, avoid overdriving the ADC's input signals and ensure that the input signals are within the specified range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8168IRHBT Overview

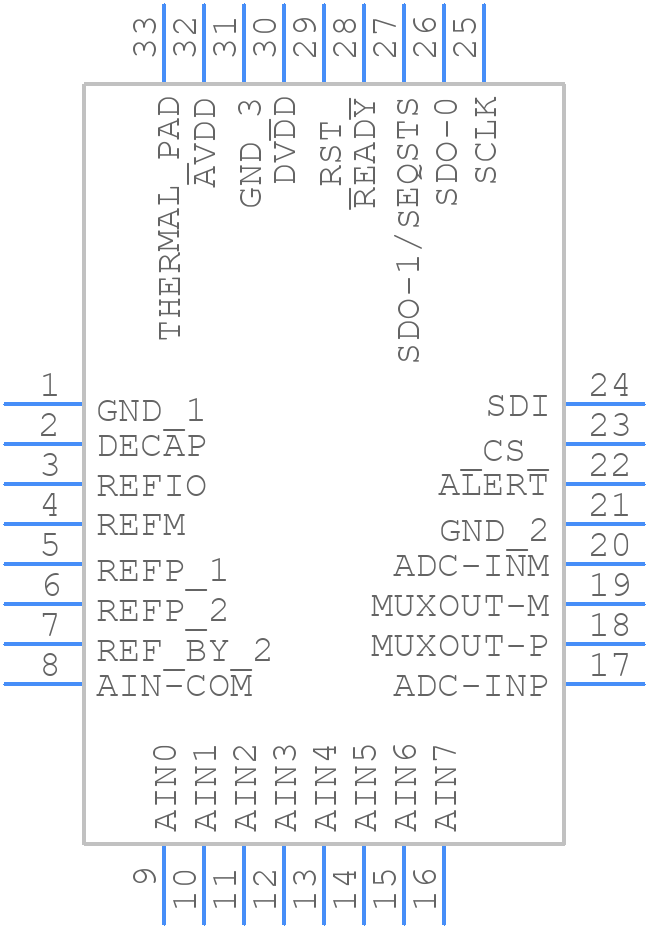

Use the download button to access the ADS8168IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS81,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
