AMC1336DWV - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialized Reinforced isolated delta-sigma modulator for voltage sensing with ±1-V input range 8-SOIC -40 to 125

Download AMC1336DWV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

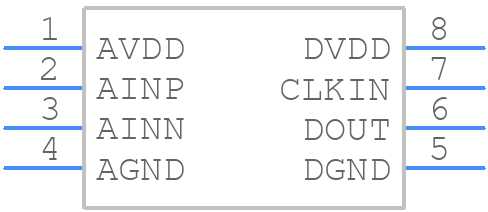

Symbol
AMC1336DWV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1336DWV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1336DWV - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1336DWV Details

  • Manufacturer Part Number:

    AMC1336DWV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AMC1336DWV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1336DWV evaluation module user's guide (SLAU685). It's essential to follow this layout to ensure proper operation and minimize noise.
  • To optimize for low noise performance, ensure proper PCB layout, use a low-noise power supply, and decouple the power pins with high-quality capacitors. Additionally, consider using a shielded enclosure and minimizing the distance between the AMC1336DWV and the signal source.
  • The AMC1336DWV can handle input voltages up to ±650 mV. However, the recommended input voltage range is ±500 mV to ensure optimal performance and linearity.
  • The AMC1336DWV does not require calibration. It is a self-calibrating device that automatically adjusts its internal offset and gain during power-up. However, it's essential to follow the recommended startup sequence and ensure proper power supply and clock signal quality.
  • The typical power consumption of the AMC1336DWV is around 35 mW at 3.3 V supply voltage and 10 MSPS sampling rate. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1336DWV Overview

Use the download button to access the AMC1336DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
