Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The BQ77PL900DL is a flexible battery management system that can be configured for various battery chemistries. You can adjust the device's settings using the I2C interface to set the charge and discharge voltage limits, charge/discharge currents, and other parameters specific to your battery type.
The BQ77PL900DL can support up to 9 series-connected battery cells. However, the maximum number of cells depends on the specific application and the battery management system's configuration.
The BQ77PL900DL has an integrated cell balancing function that ensures equalization of the battery cells. The device can balance up to 9 cells, and the balancing currents are programmable up to 100 mA per cell.
The BQ77PL900DL has several safety features, including overcharge and over-discharge protection, over-current protection, short-circuit protection, and thermal protection. These features help prevent damage to the battery and the system, ensuring safe and reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ77PL900DL Overview

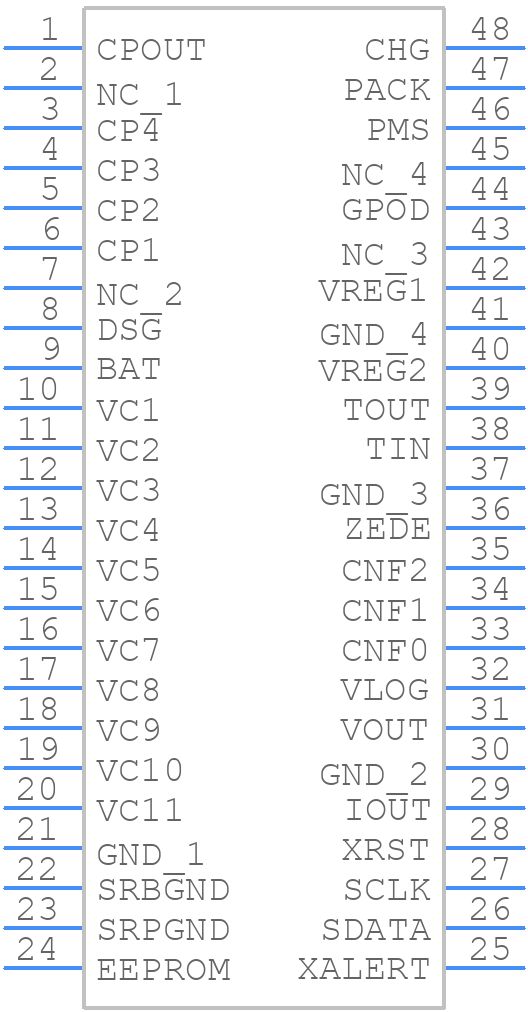

Use the download button to access the BQ77PL900DL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ77P,
or try a keyword search, such as Power Management Circuits
