LT1004CPW-1-2 - Texas Instruments

Description: Micropower Integrated Precision Voltage Reference

Download LT1004CPW-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

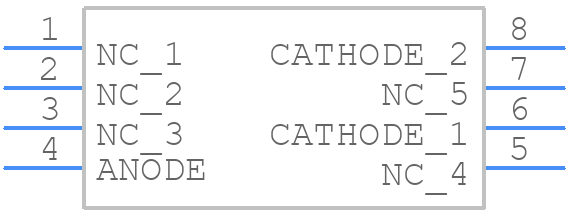

LT1004CPW-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1004CPW-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
LT1004CPW-1-2 - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

LT1004CPW-1-2 Details

  • Manufacturer Part Number:

    LT1004CPW-1-2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.8%

  • Width:

    3 mm

LT1004CPW-1-2 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure stable and accurate output voltage, it's recommended to use a high-quality output capacitor with low ESR, and to decouple the input voltage with a capacitor. Additionally, the output voltage should be measured at the output pin of the regulator, rather than at the load.
  • Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V to ensure reliable operation and to prevent overheating.
  • To protect the regulator from overcurrent and overheating, it's recommended to add an external current limiting resistor or a fuse, and to ensure good thermal conduction between the regulator and the PCB or a heat sink.
  • The LT1004CPW-1-2 is rated for operation up to 125°C, but it's recommended to derate the output current and to ensure good thermal conduction to prevent overheating. Additionally, the regulator's performance and reliability may be affected at high temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1004CPW-1-2 Overview

Use the download button to access the LT1004CPW-1-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References
