- Part Number THS3202DGKR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGK (S-PDSO-G8)
- Released Date Oct 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
THS3202DGKR Details
-
Manufacturer Part Number:
THS3202DGKR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
MSOP
-
Package Description:
GREEN, PLASTIC, VSSOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
THS3202DGKR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the THS3202DGKR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The input termination depends on the specific application and signal source. TI recommends using a 50-ohm termination for high-frequency signals, while a 1-kohm termination is suitable for low-frequency signals. The datasheet provides more information on input termination options.
-
The maximum power dissipation of THS3202DGKR is 1.4W. To ensure it doesn't overheat, TI recommends using a heat sink, keeping the device away from other heat sources, and providing adequate airflow. The thermal resistance of the package is also provided in the datasheet.
-
Yes, THS3202DGKR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at higher temperatures. TI recommends consulting the datasheet and application notes for guidance on using the device in high-temperature environments.
-
TI provides application notes and troubleshooting guides that cover common issues with THS3202DGKR. These resources provide guidance on identifying and resolving problems related to oscillations, instability, and other performance issues.
Trust Checks
Community Provided
System Verified
Community Approved
THS3202DGKR Overview

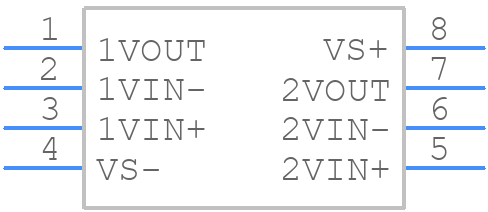

Use the download button to access the THS3202DGKR schematic symbol, PCB footprint, and 3D model.
