IT CAN ALSO OPERATE WITH 6.6V TO 15V SINGLE SUPPLY
Bandwidth-Nom:
1800000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
Gain:
10 dB
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
7.5 V
Supply Voltage-Min (Vsup):
3.3 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
THS3202DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3202DGNRG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The input termination depends on the specific application and signal source. The THS3202DGNRG4 datasheet provides guidelines for selecting the correct input termination, including the use of resistive, capacitive, or inductive termination. Additionally, Texas Instruments offers online tools and simulation models to help with input termination selection.
The THS3202DGNRG4 is specified to operate from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding and filtering techniques. Additionally, consider using the THS3202DGNRG4's built-in electromagnetic interference (EMI) filters and following Texas Instruments' EMC design guidelines.
The THS3202DGNRG4 datasheet recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, as well as using a pi-filter or LC-filter to reduce noise and ripple. Additionally, consider using a low-dropout regulator (LDO) to regulate the power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3202DGNRG4 Overview

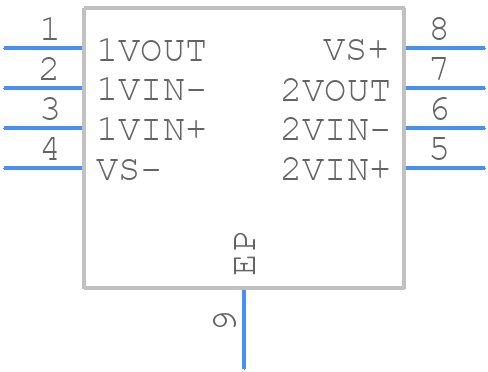

Use the download button to access the THS3202DGNRG4 schematic symbol, PCB footprint, and 3D model.
