Texas Instruments provides a recommended PCB layout in the TPA311DRG4 datasheet (section 10.2) and in the application note SLAA883. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet (section 8.2.1).
The maximum power dissipation of the TPA311DRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 15W at 25°C ambient temperature, with a thermal resistance of 24°C/W. However, this value can be derated based on the actual operating conditions.
Yes, the TPA311DRG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, input signal phase, and output filter design. TI provides guidance on bridged configurations in the datasheet (section 8.3.1) and in application notes.
The TPA311DRG4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as voltage supervisors and TVS diodes, to ensure robust protection against voltage transients and faults.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA311DRG4 Overview

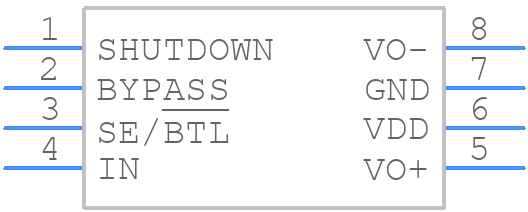

Use the download button to access the TPA311DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31,
or try a keyword search, such as Audio/Video Amplifiers
