SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
3 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD SILVER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA6110A2DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA6110A2 datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow this layout to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA6110A2DGNRG4 depends on the specific requirements of your application. You can use the gain selection table in the datasheet to determine the appropriate gain setting based on the input voltage, output voltage, and desired output power. You may also need to consider factors such as noise floor, distortion, and stability.
The maximum power dissipation of the TPA6110A2DGNRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at a junction temperature of 150°C. However, it's essential to perform thermal analysis and simulation to ensure that the device operates within safe operating conditions.
The TPA6110A2DGNRG4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components such as voltage regulators, TVS diodes, and capacitors to ensure that the device operates within the specified voltage range.
The recommended input capacitor value for the TPA6110A2DGNRG4 is 2.2uF to 4.7uF, depending on the input voltage and frequency. A larger input capacitor can help to reduce noise and ripple, but it may also increase the startup time and affect the stability of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6110A2DGNRG4 Overview

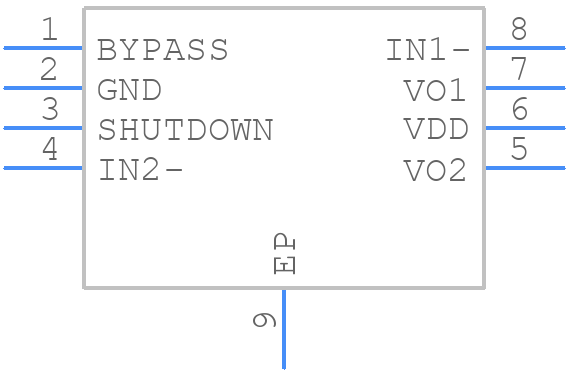

Use the download button to access the TPA6110A2DGNRG4 schematic symbol, PCB footprint, and 3D model.
